ATEM POWER 200 AMP Digital Volt Watt Meter Caravan Camping Solar 12V 4x4

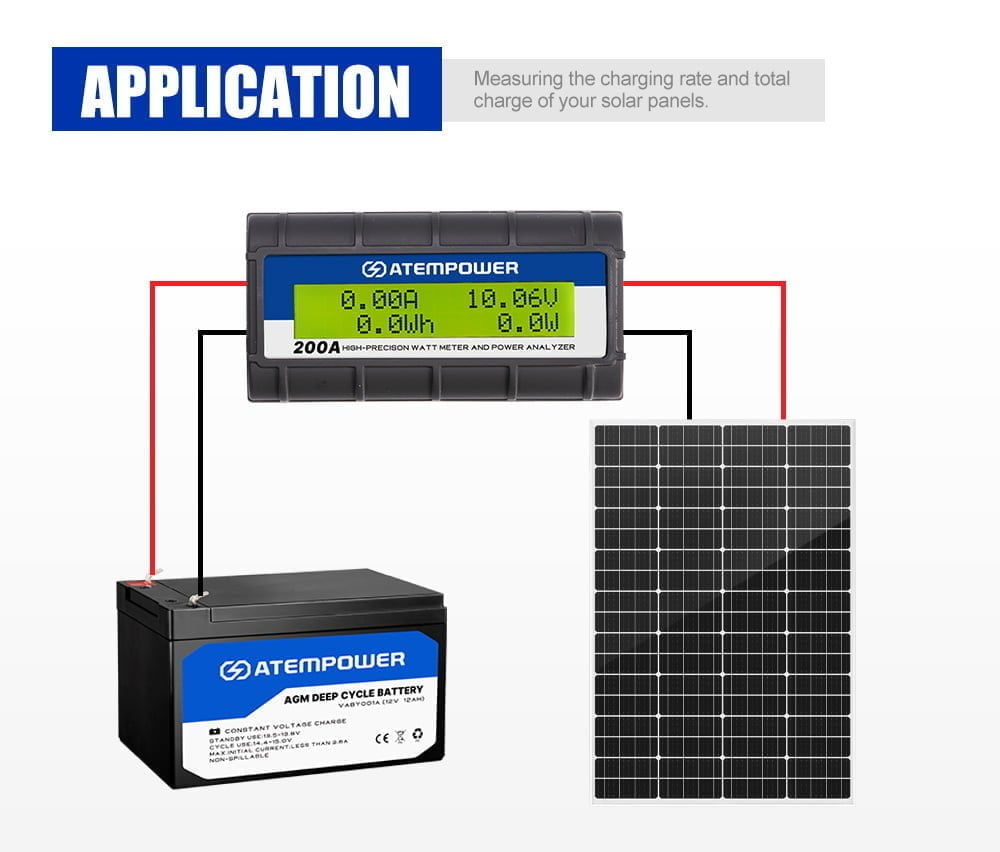

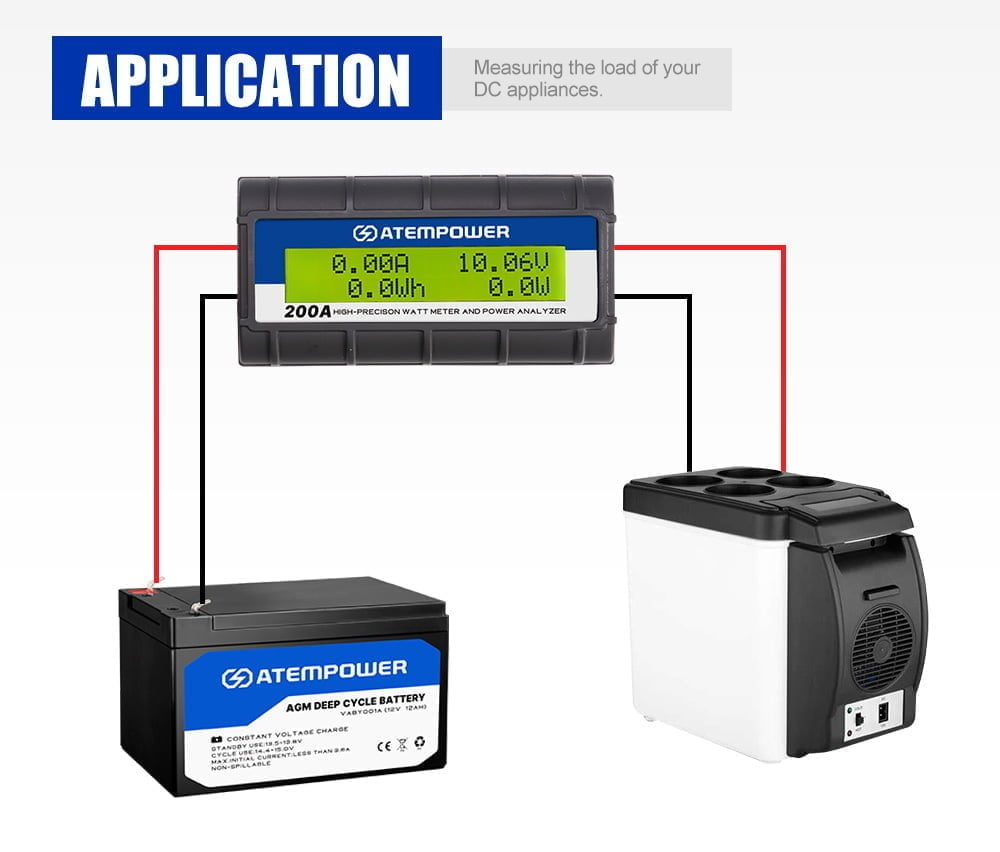

Want to know how much energy your solar panel is producing, the charging status of the battery or draw from 12V fridges, caravan, camping, 4wd, marine & dual battery systems? With the high-contrast backlit LCD display, this ATEM POWER watt meter provides 8 real-time electrical readings: current, voltage, power, charge, energy, current peak, min voltage & power peak with high resolution 0.01A, 0.01V, 0.1W, 0.001Ah and 0.1Wh, which can be viewed with ease. If you use an auxiliary battery, the meter can be powered to measure the range of 0-9V and achieve more precise measurements, as the measurements do not include the small amount of power to operate the meter. A special feature of the watt meter is that it can be easily installed with Anderson plugs and works automatically. Whether you want to monitor how much power your fridge is consuming or how much power your solar panel is putting back into your battery - this handy little power analyzer can do it all.

Features

• Real-Time Display: This watt meter features real-time display of current, voltage & power continuously, with all other 5 values presented sequentially every 2s.
• 8 Parameters Measurement: This watt meter provides 8 electrical readings: current, voltage, power, charge, energy, current peak, min voltage & power peak.

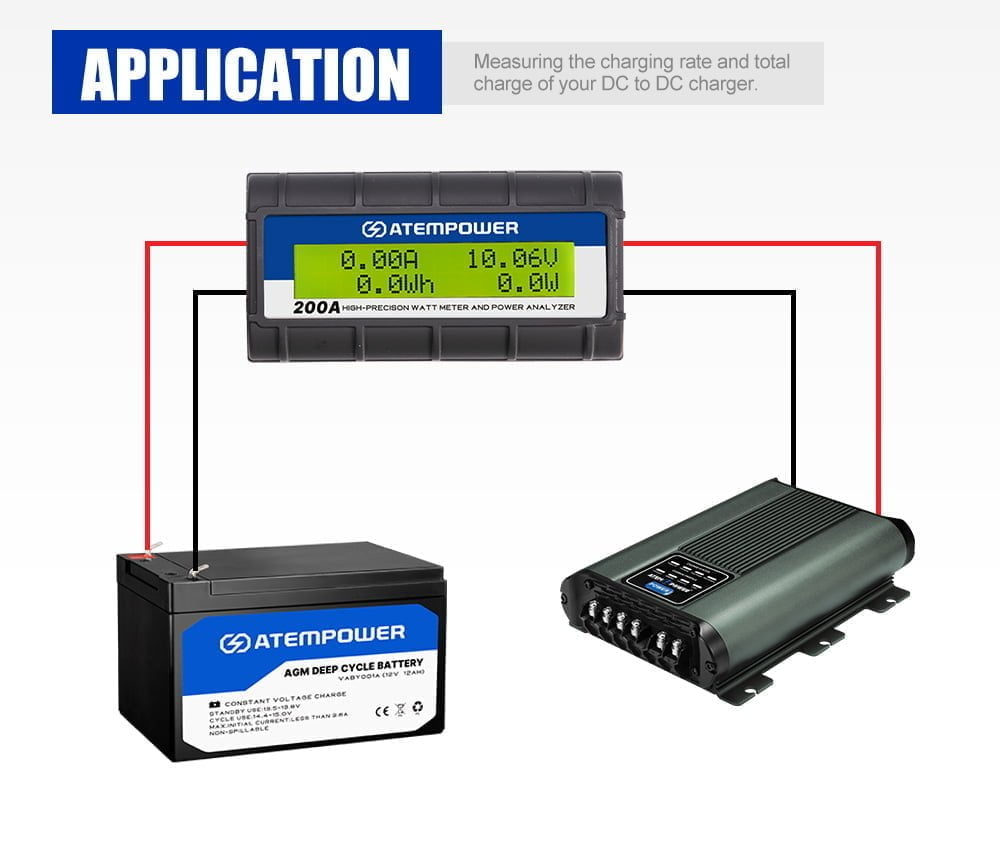

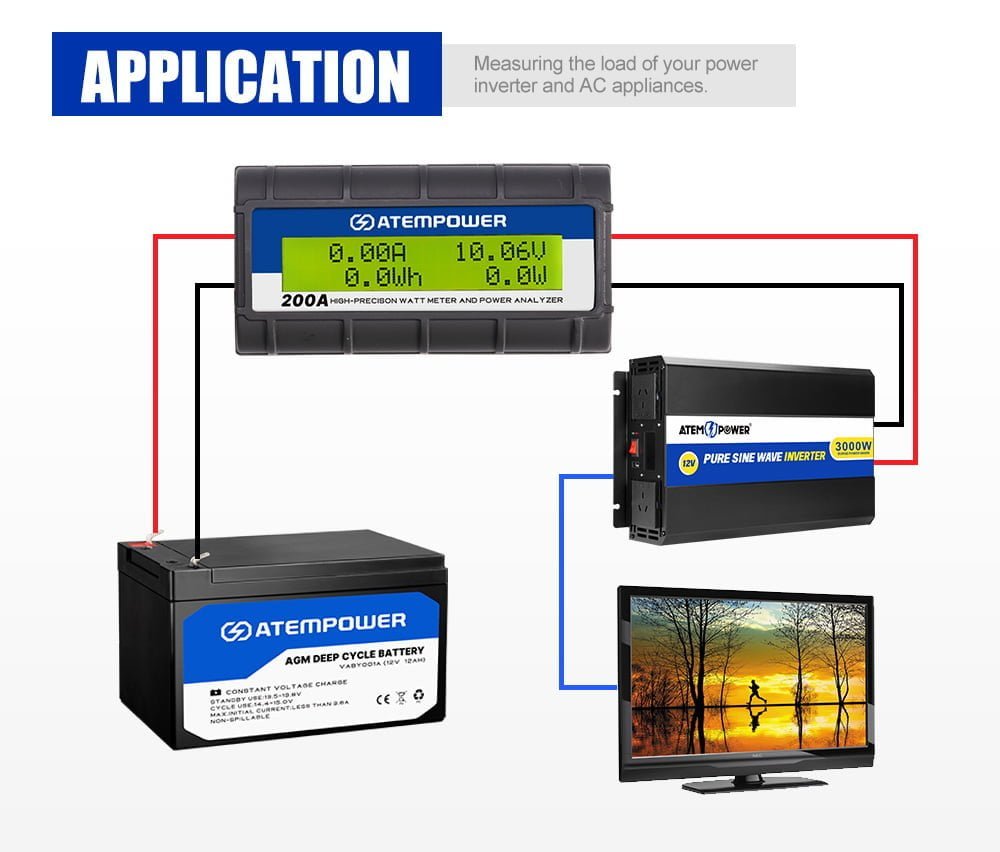

• Super Versatility: Ideal for caravan, camping & dual battery systems, it allows you to see what is happening with your solar panel, fridge or charging system.
• High-Contrast Backlit LCD Display: The high-contrast display is designed to make it easier to read measurements in full sun or at night.

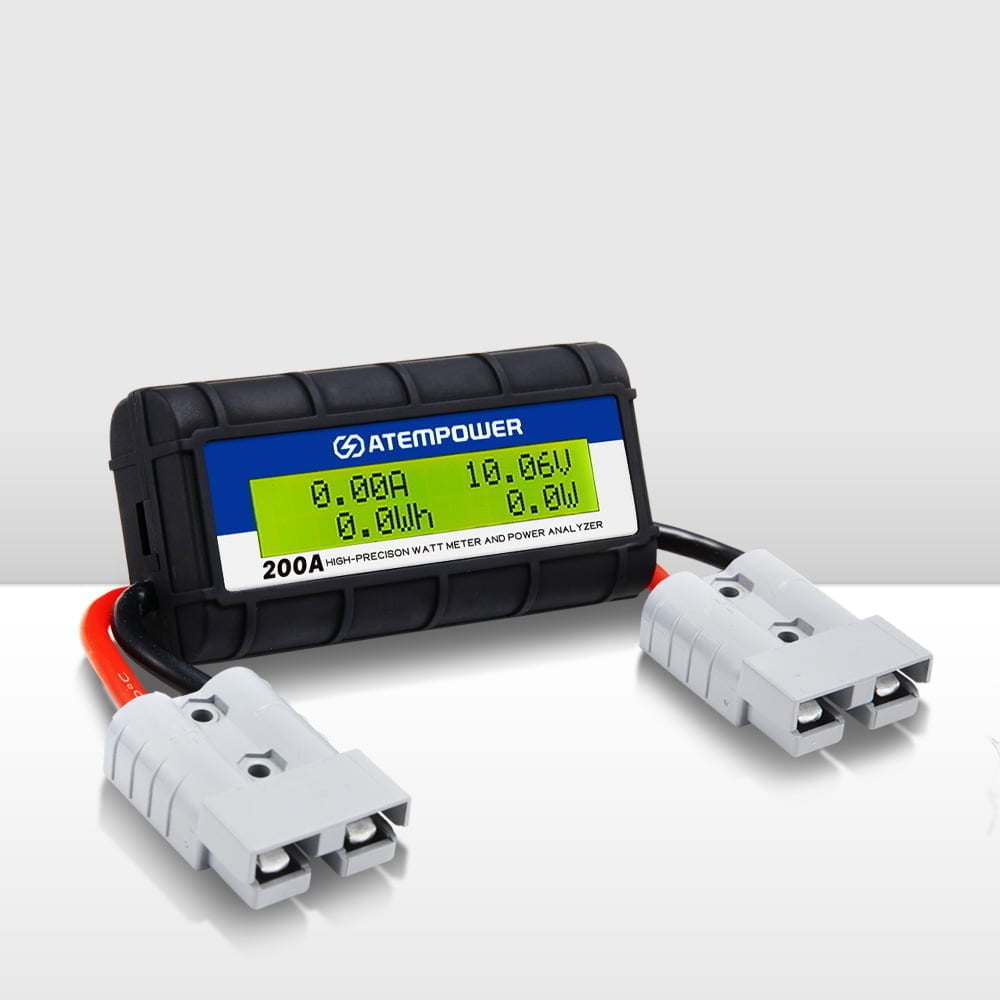

• Plug & Play: This ATEM POWER watt meter comes with pre-installed Anderson plugs for easy in-line connection with your solar panels, batteries or loads.
• Easy-to-Use Design: This easy-to-use power analyzer requires no configuration and works automatically.
• High Precision: This ATEM POWER watt meter features resolution 0.01A, 0.01V, 0.1W, 0.001Ah and 0.1Wh, which gives you great peace of mind.
• Auxiliary Power Option: Using the auxiliary power connector, the meter can be powered to measure the range of 0-9V and achieve more precise measurements.
• Durable Construction: Made of tough ABS, this compact watt meter is designed to provide you with years of reliable use.

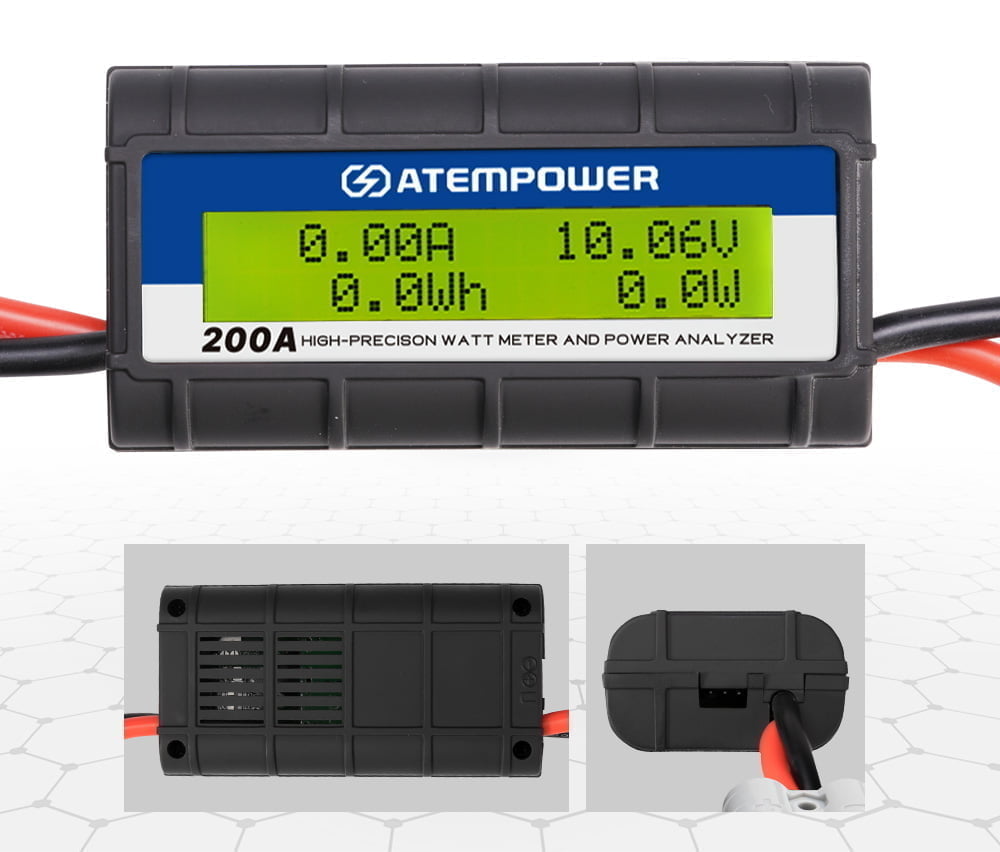

• Rapid Heat Dissipation: Dense vents on the bottom are designed to rapidly dissipate heat for smoother operation.

Specification

Material:	ABS
Operation Voltage:	0-60V(0-9V with Auxiliary Power)
Operation Current:	0-200A
Auxiliary Battery Operating Voltage:	DC 9-60V
Auxiliary Battery Operating Current:	0.2-0.5A
Operating Temperate:	0℃(32℉)-70℃(158℉)
LCD Display Screen:	16 Character x 2 Row STN LCD
Measurement Update Period:	0.4s
Data Queue Sequence Time:	2s
Wire Size:	12AWG

Package Includes

Warranty

1-Year Warranty
